Manual for use

Assembling manual

Before the installation assembly first 3 blocks to drought, area openings for ventilation grille and door of chimney, then cut out the holes.

On the concrete base to the designated place for the chimney to fit on the flexible glue chimney block and condensate bowl with a hole for water drainage. Into the hole that is on the side or in the bottom in the middle of the bowl fit the small tube and bring out.

Next, fit the ceramic tube with a rectangular hole for the collection of the chimney. Try the chimney doors from pressing on the front of the rectangular hole in the ceramic tube and then fasten chimney door. In case without plaster on the chimney, cut off the excess part of the rectangular opening in the refractory fitting so that the door is good in block.

Ceramic tubes combine the refractory cement Rudomal, which is included in delivery. After the mounting of each tube, from the level of the lower edge of the chimney door, into the space between outside of the pipe and the inside of the blocks put isolation, so as to remain unobstructed ventilation ducts. Always use two pieces of isolation around the pipe carved grooves towards the pipe. Recently isolation strip is cut to 2 cm below the top edge of the last block, i.e. 2 cm below the underside of the concrete cover plate.

Fit the tee to the required height. Due to the expansion of the chimney must be the distance between the tee ceramic tube cut in the block, top and bottom min. 4 cm. Cut an opening for tee in the the block, and the space between tee and block fill mineral wool isolation. From the middle of the chimney to the cover plate fitted into holes in the corners of the blocks concrete reinforcement diameter 8 mm and fill out the thin concrete. The reinforcement is inserted into the holes of 1,5 to 2 m in block, is folded over itself.

If you have Final fittings, fit in the roof part instead of the chimney blocks on flexible glue. Into the holes in the corners fit reinforcement. It is important that the loading area between Final fittings were smeared with glue around without gaps to prevent the flow of water into the center of the chimney. Recently ceramic tube shorten so that beyond about 16-19 cm above the edge of the last block. Measure the type of cover plate. The connection between the last and penultimate ceramic pipe attach stainless steel buckle and tighten the screw. Then fit the cover plate on a concrete adhesive. Finally, put a thin layer of refractory cement or silicone sealant outside of the refractory tube with a width of about 5 cm and come across a pipe inox chimney cup with roof and tighten the screws. Carefully eclipsed the top edge - joint top edge of the refractory tubes and inox chimney cup. At the bottom of the inox cup are protrusions so that the space between the inox cup and the cover plate could occur ventilation chimney. These projections rest on the concrete cover plate.

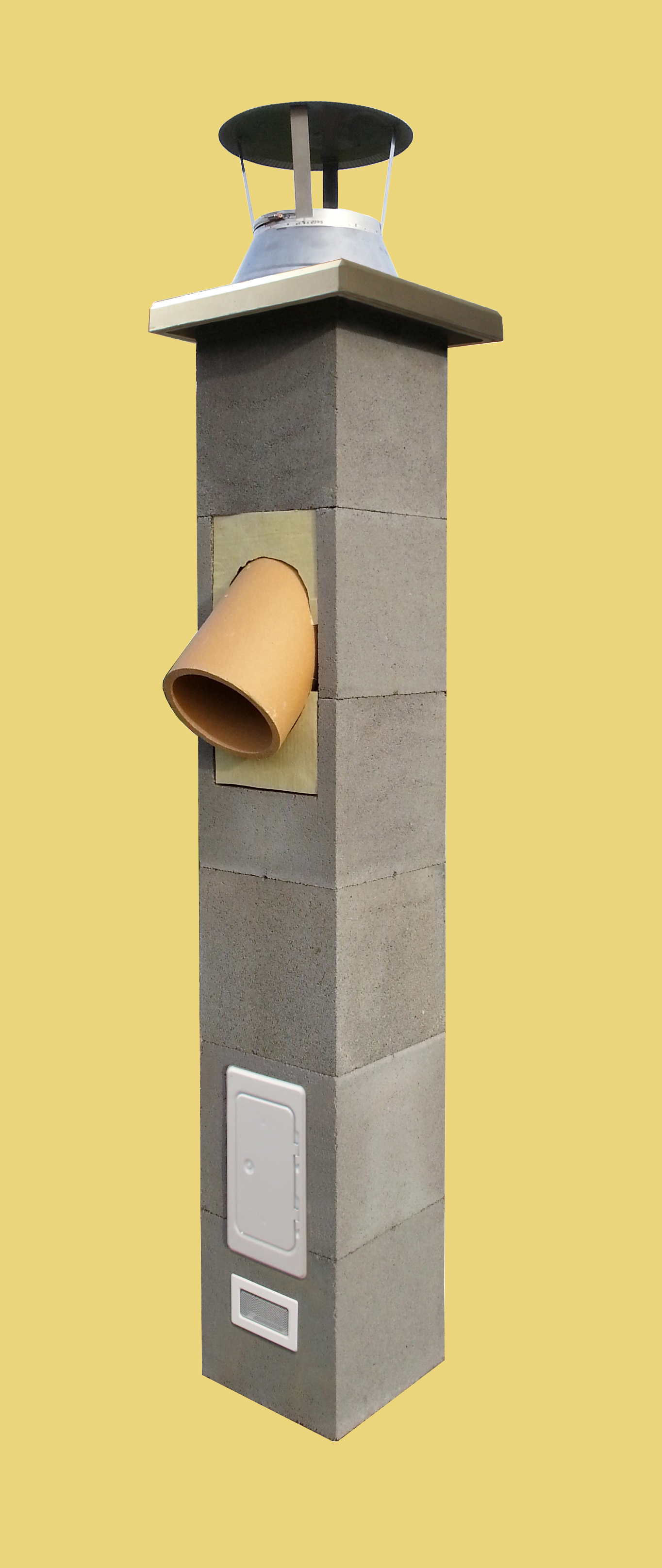

Jednokomín š žlutá

The chimney, which is being built at the outer wall must be anchored strip steel for a minimum of 3 meters bearing walls, then loaded into gauze glue and plaster. The chimney must be on the basis of size 50x50 cm. The base goes into the freezing depth. That is, in the temperature range 80-120 cm. Reinforcement must be fitted in the corners of blocks along the entire height of the chimney. On the north side of the windward recommend chimney isolation to no frozen.

Before the installation assembly first 3 blocks to drought, area openings for ventilation grille and door of chimney, then cut out the holes.

On the concrete base to the designated place for the chimney to fit on the flexible glue chimney block and condensate bowl with a hole for water drainage. Into the hole that is on the side or in the bottom in the middle of the bowl fit the small tube and bring out.

Next, fit the ceramic tube with a rectangular hole for the collection of the chimney. Try the chimney doors from pressing on the front of the rectangular hole in the ceramic tube and then fasten chimney door. In case without plaster on the chimney, cut off the excess part of the rectangular opening in the refractory fitting so that the door is good in block. When using the door with the frame 6 cm deep, fit a frame inside a rectangular hole and screw the front door to the block on the dowel.

Ceramic tubes combine the refractory adhesive, which is included in delivery. After the mounting of each tube, from the level of the lower edge of the chimney door, into the space between outside of the pipe and the inside of the blocks put isolation, so as to remain unobstructed ventilation ducts. Always use two pieces of isolation around the pipe carved grooves towards the pipe. Recently isolation strip is cut to 2 cm below the top edge of the last block, i.e. 2 cm below the underside of the concrete cover plate.

Fit the tee to the required height. Due to the expansion of the chimney must be the distance between the tee ceramic tube cut in the block, top and bottom min. 4 cm. Cut an opening for tee in the block, and the space between tee and block fill mineral wool isolation. From the middle of the chimney to the cover plate fitted into holes in the corners of the blocks concrete reinforcement diameter 8 mm and fill out the thin concrete. The reinforcement is inserted into the holes of 1,5 m to 2 m in block, is folded over itself.

If you have Final bricks, fit in the roof part instead of the chimney blocks on flexible glue. Into the holes in the corners fit reinforcement. It is important that the loading area between Final fittings were smeared with glue around without gaps to prevent the flow of water into the middle of the chimney. Recently ceramic tube shorten so that beyond about 16-24 cm above the edge of the last block. Measure the type of cover plate. The connection between the last and penultimate ceramic pipe attach stainless steel clip and tighten the screw. Then fit the cover plate on a flexible glue. Finally, put a thin layer of refractory adhesive or silicone sealant outside of the ceramic tube with a width of about 5 cm and come across a pipe inox chimney cup with roof and tighten the screws. At the bottom of the inox cup are protrusions so that the space between the inox cup and the cover plate could occur ventilation chimney. These protrusions abut on the concrete cover plate.



The chimney, which is being built at the outer wall must be anchored strip steel for a minimum of 3 meters bearing walls, then loaded into gauze glue and plaster. The chimney must be on the basis of size 50x50 cm. The base goes into the freezing depth. That is, in the temperature range 80-120 cm. Reinforcement must be fitted in the corners of blocks along the entire height of the chimney. On the north side of the windward recommend chimney isolation to no frozen.

The hole in the selecting piece of land space is required to install refractory cap and chimney door. Door frame at the fireclay attach flange. DO NOT CONNECT! Ceramic flue moves up and down depending on the temperature of the flue gas. Second selection item is only used when the chimney can not be cleaned from the roof.

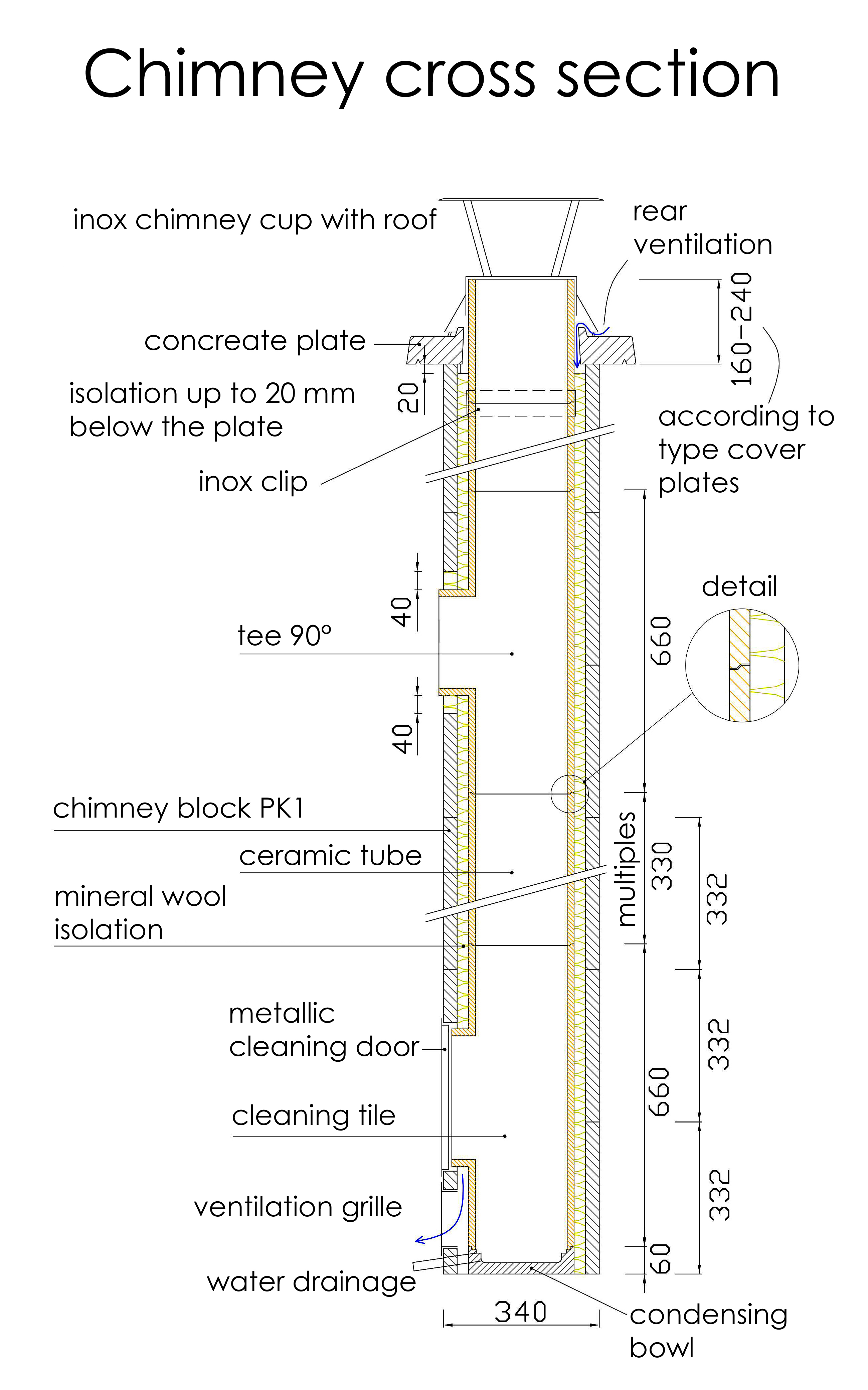

řez 2015 EN

w Schema komín



ra Rozstřel logo s čistícm kusem + řez domem

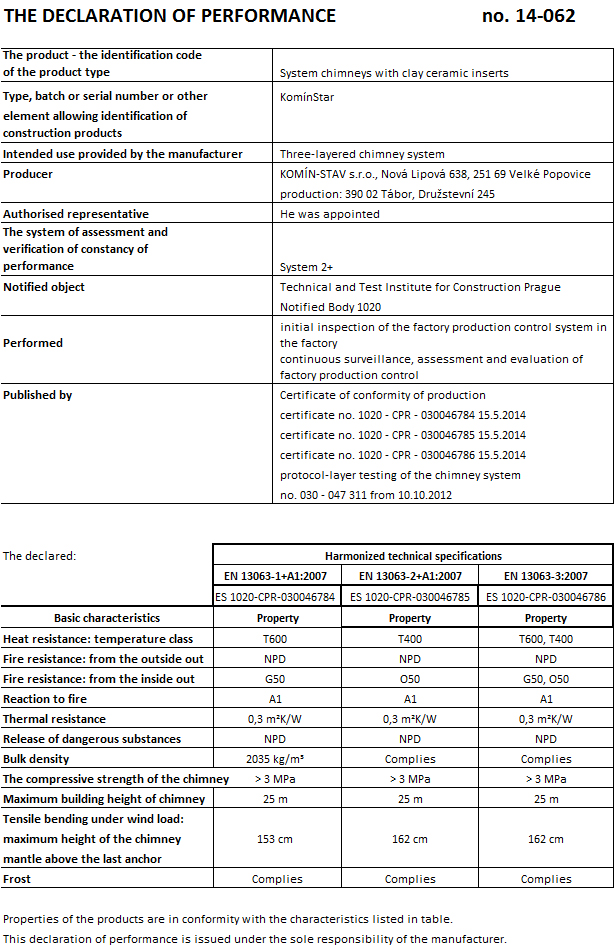

Declaration of performance 2014
